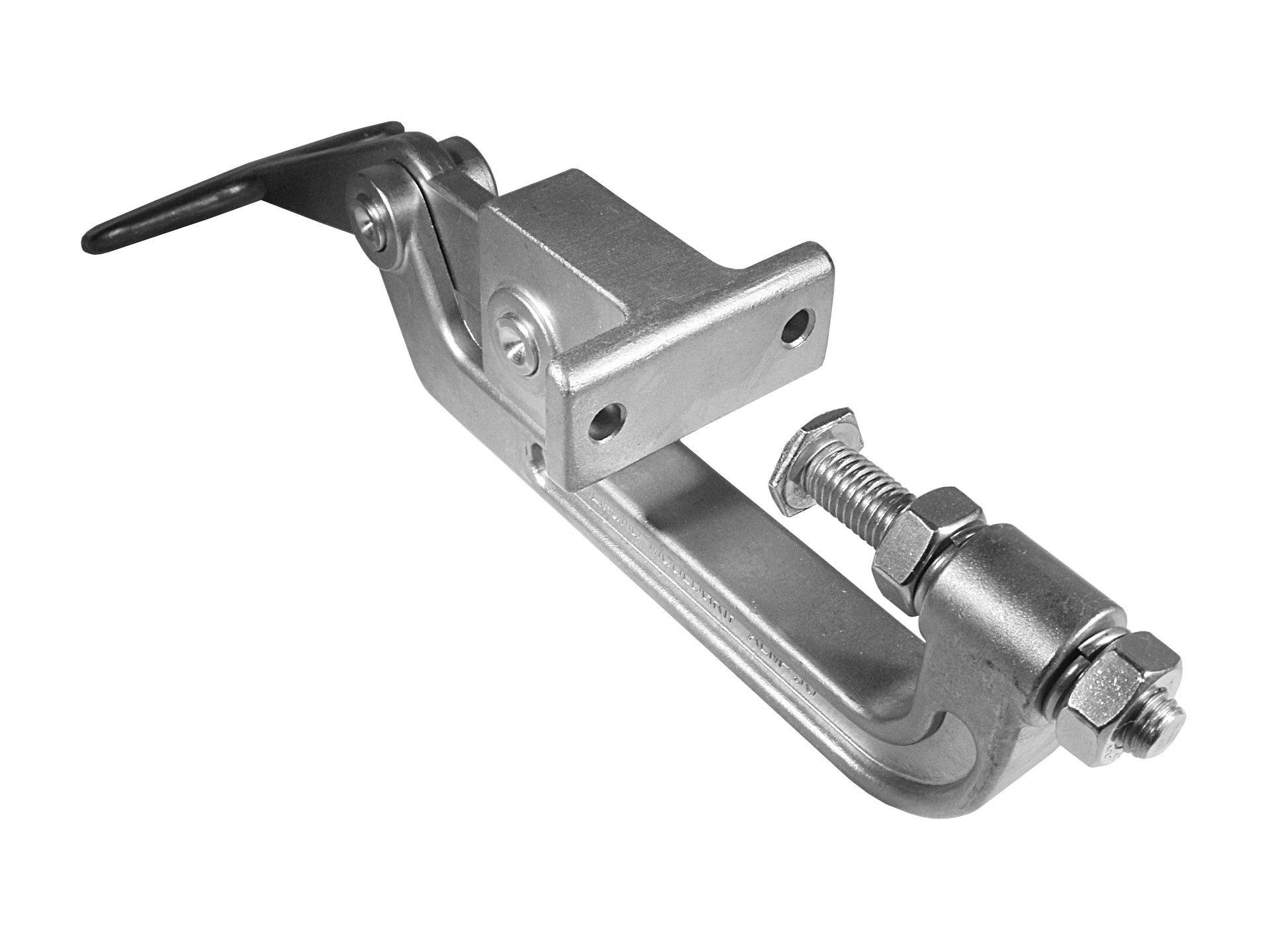

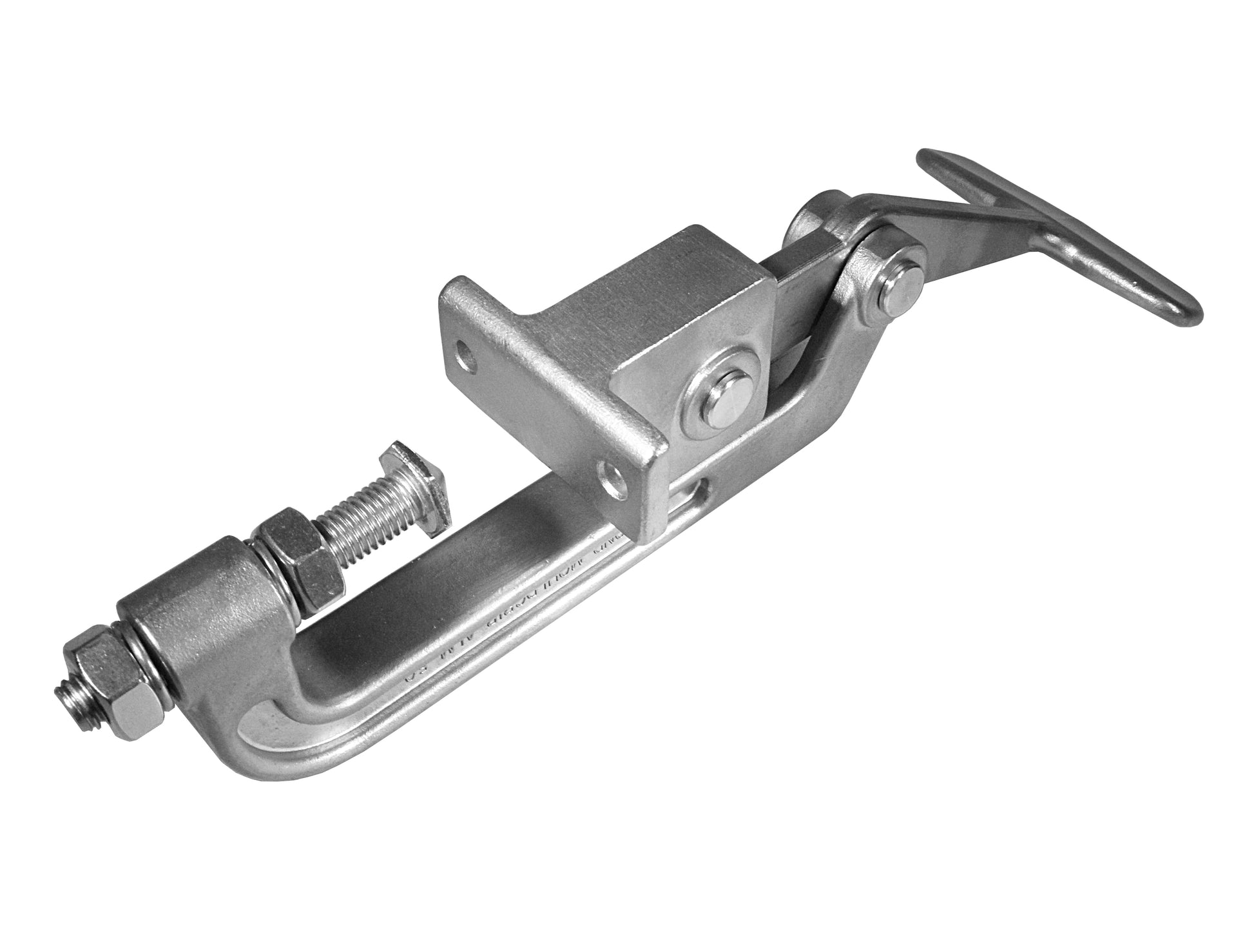

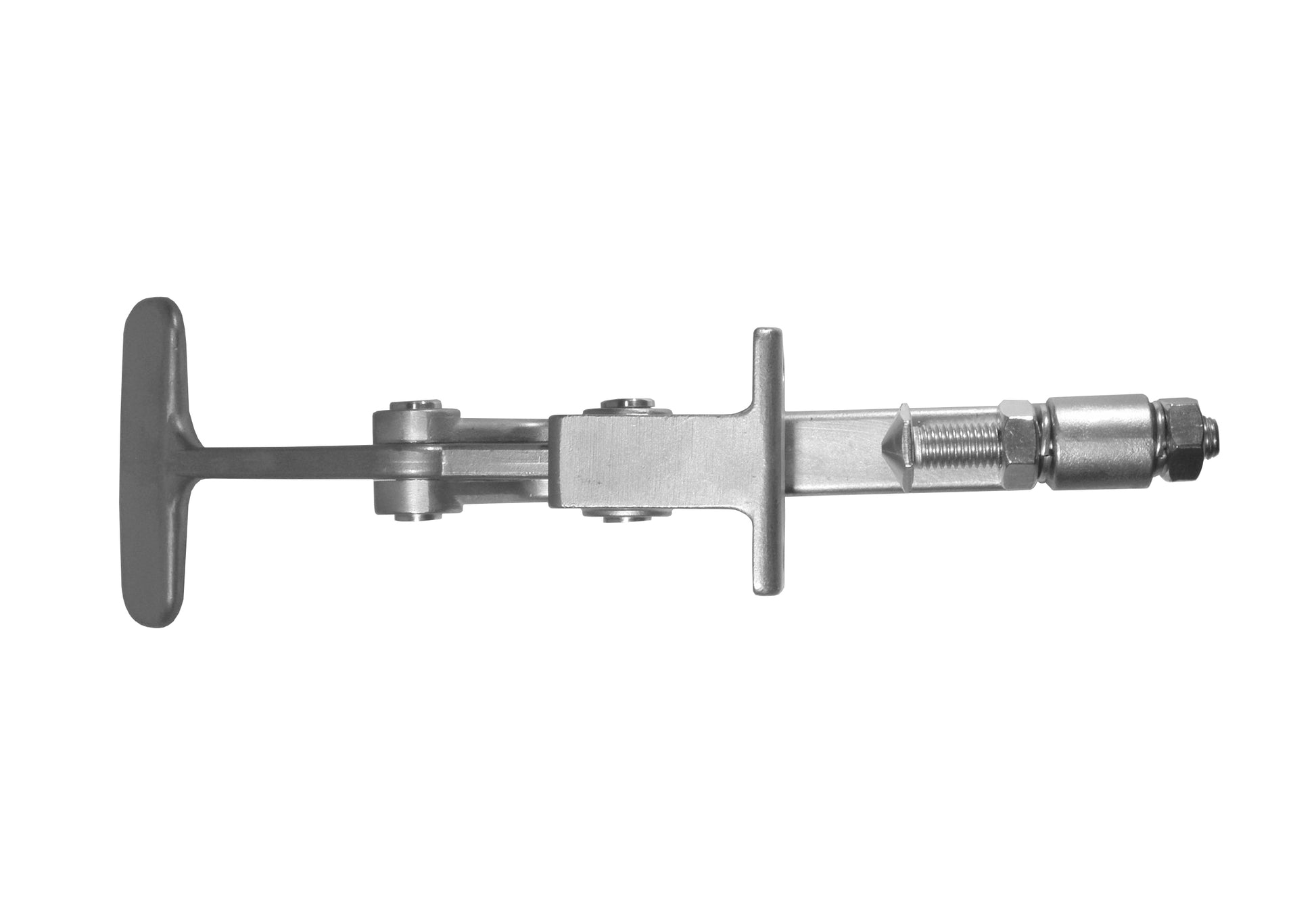

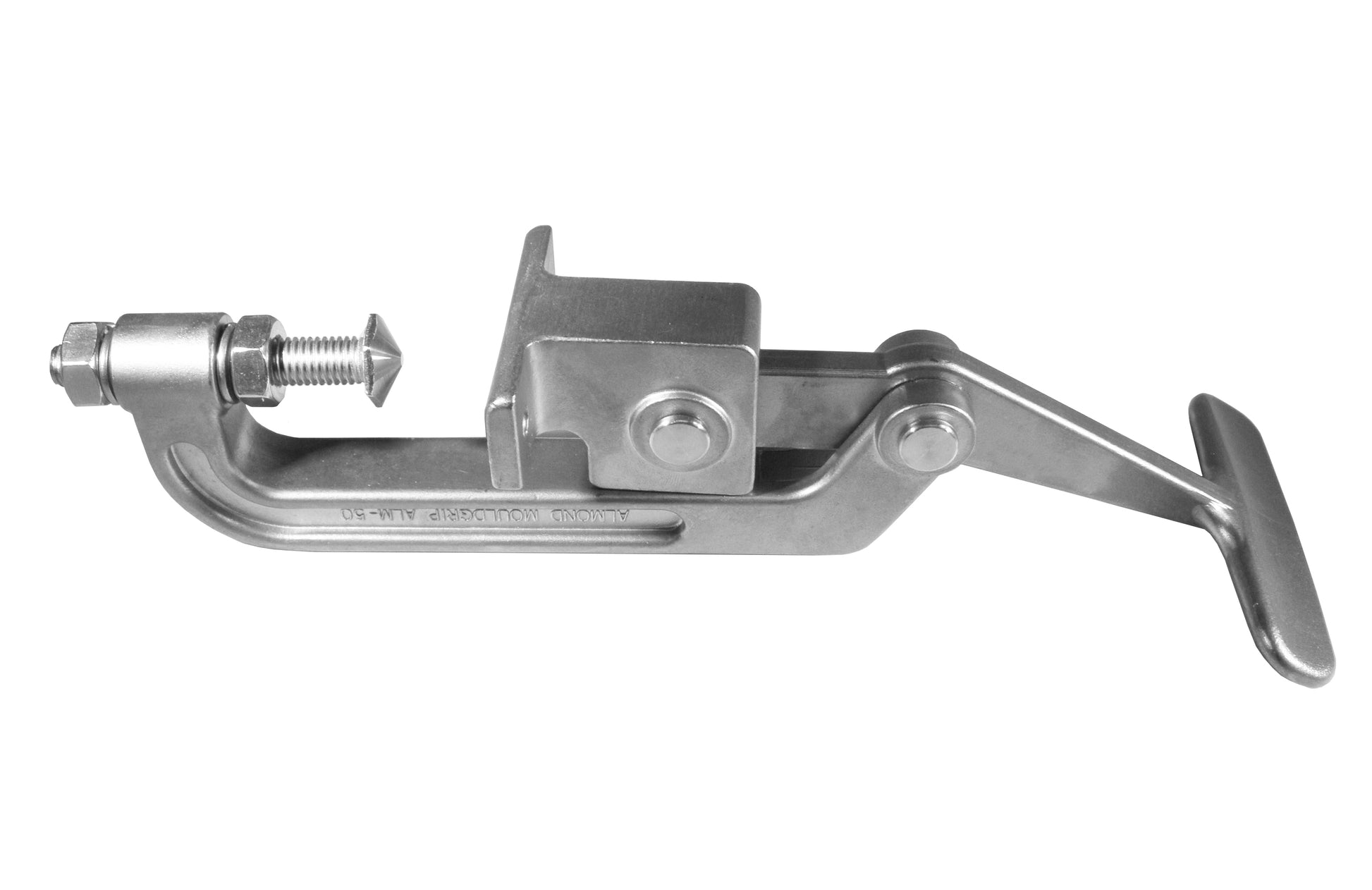

Clamp, Almond 50 Flange, KC6286

Almond flange clamp, ALM-50 is a highly durable, die cast stainless steel clamp, with a holding capacity of 800 lbs. It has been developed specifically to provide additional clamping strength and durability required by large rotational molds and multiple-mold spiders. The ergonomically designed handle fits comfortably in the user's hand and reduces stress on the hand during activation.

Robust Design

• Safe and easy to use.

Tough Cast Stainless Steel Construction

• Corrosion resistant through thousands of heating/cooling cycles.
• If you can find a longer lasting clamp on the market, buy it!

Comfortable Fishtail Handle

• Quick and easy to use.
• Removes any temptation to put a bar over the handle for extra leverage risking damage to the clamp and worse the mold.

Easy to Fit and Adjust

• Improves productivity

Includes Striker Plate KC-6288, and bolts with nuts and washer, KC6285.

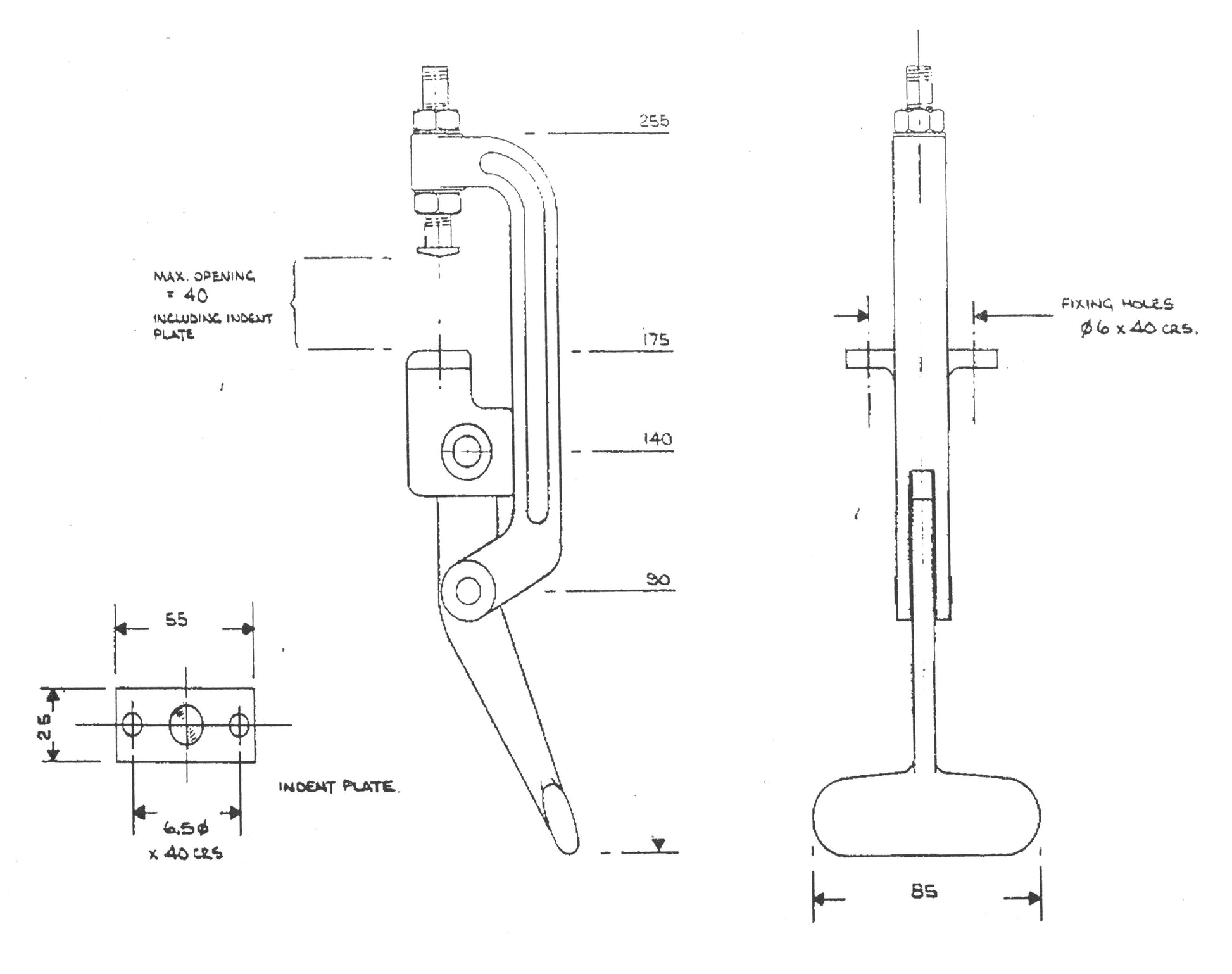

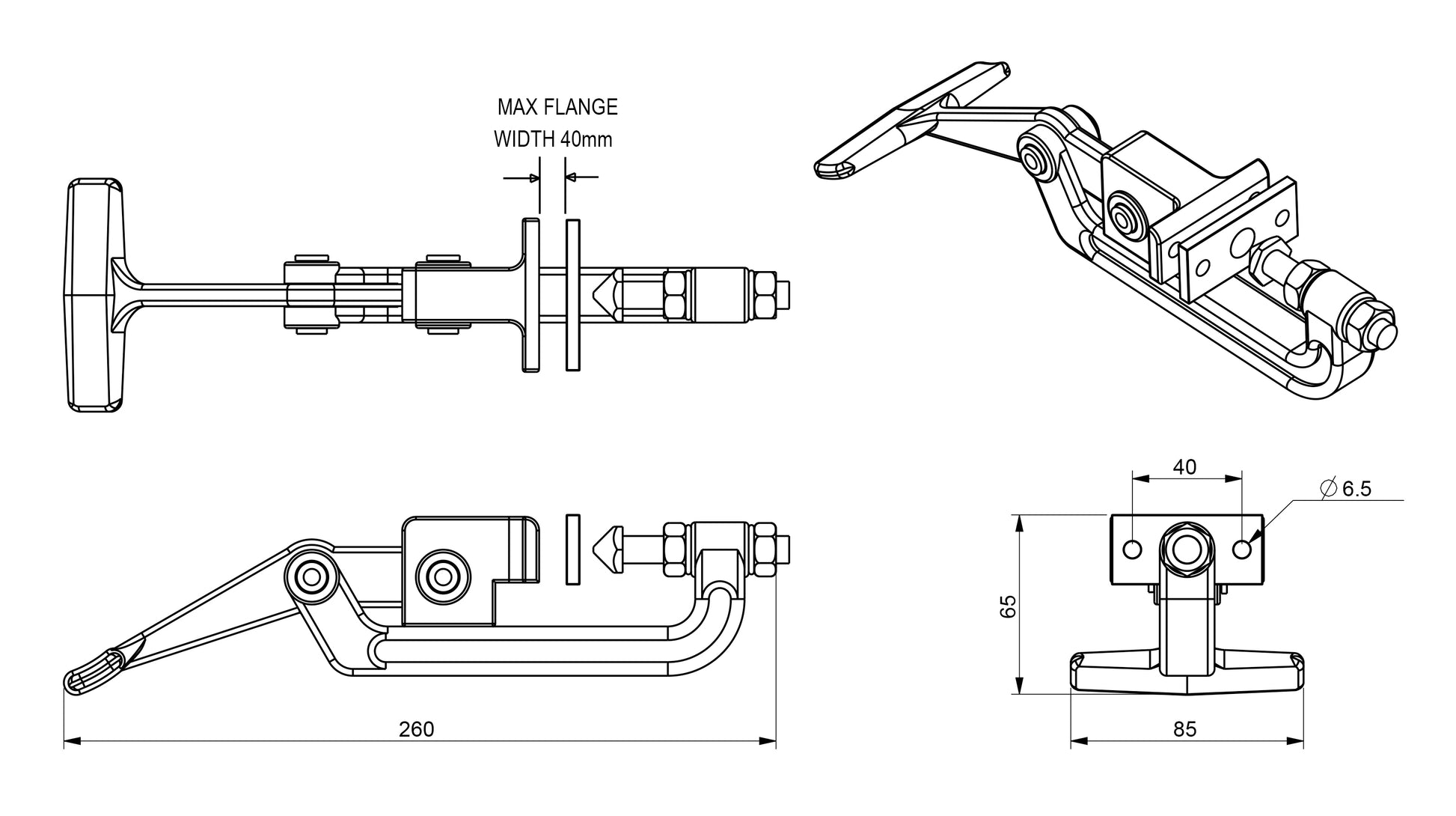

Max flange width: 40mm.

For smaller flanges see our Almond 40 Clamp KC6280.
